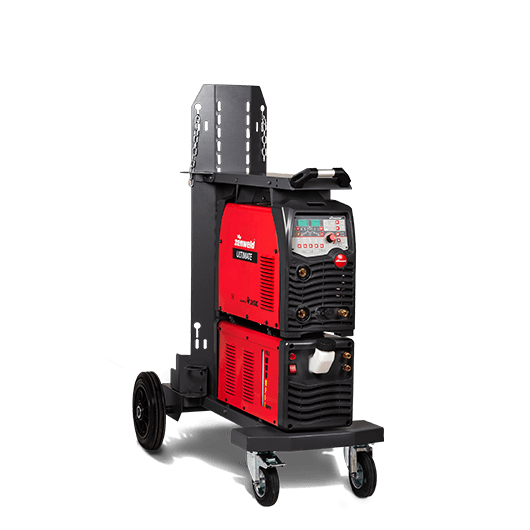

Zenweld Ultimate 320 ACDC (Water Cooled - Trolley)
TIG AC/DC
Professional solution in aluminum welding!
Highlights |
| User-friendly front panel |
| Digital current display |
| Perfect arcing with high frequency (HF) |
| Possibility to use current adjustable torch |
| Transporter car with modern design |
| Water cooling unit with high rate water flow rate |
Highlights | |
| User-friendly front panel | Digital current display |
| Perfect arcing with high frequency (HF) | Possibility to use current adjustable torch |
| Transporter car with modern design | Water cooling unit with high rate water flow rate |
Product Description
Ultimate 320 ACDC 3-phase TIG ACDC welding machine is designed to offer solutions to all TIG applications with its pulsed current feature.
It is easy to switch between TIG AC, TIG DC and MMA welding methods with a single button.
The welding performance is extremely good and professional.
The pulsed current reduces the heat entering the material, allowing the material to weld more easily and eliminates the problem of rapid cooling and flowing of the weld seams.
The air-cooled versions are easy to use in open air applications, while the aqueous versions are ideal for intensive and long welding applications.
The AC waveform options include square wave, triangular wave and sine waveforms, providing a suitable welding form for aluminum alloys.
It is possible to make the best arc setting for AC balance and frequency welding applications.
Product Features
Power Consumption9kVA
Activation Rate315A %30
Mains Voltage3 X 380V
Current Range10 - 315A
Size223 X 566 X 405mm
Weight25,5kg
Protection ClassIP21S
StandardEN 60974-1
Product Icons
- Protection Module Activated After Overheating
- Electro Magnetic Compatibility Test
- Arc Power (penetration setting)
- Electrode does not stick to the workpiece
- Ability to Work with Generator
- IGBT Technology
- Protection Class Test
- LCD (Liquid Crystal Display) - Digital Display
- TIG Lift (Contact TIG Arc Start Function)
- Water cooled
- Pulsed Current (Pulse)
- Hot Start (easier arcing of the electrode at the first burning moment)
Order Information
Ultimate 320 ACDC (Water Cooled - Trolley)Product Code:Z03.02.78
Colormatic mask(Optional)
Chassis pliers and cable (35 mm2 - 3 m)Standard Accessory
Pressure reducing regulatorStandard Accessory
TIG 18 4m TorchStandard Accessory
TIG 18 8m Torch(Optional)
